INTERBALL Tail Probe flight longterm situation analysis



The longterm orbit evolution and ballistic lifetime

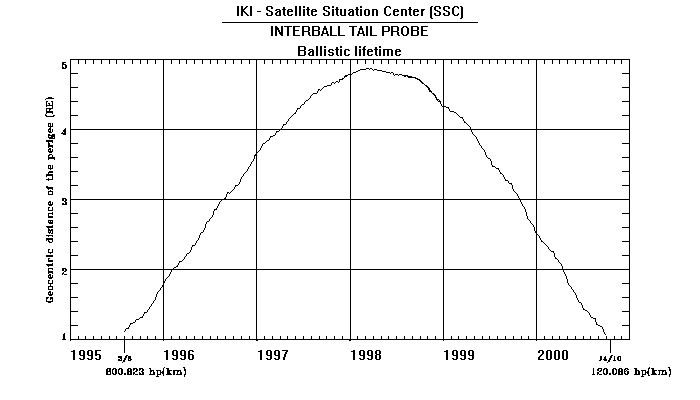

The history of the perigee geocentric distance evolution under solar - moony perturbations is shown on the picture (click icon to make larg picture). As a result of this evolution the Tail probe will stop his ballistic life in the middle October 2000.

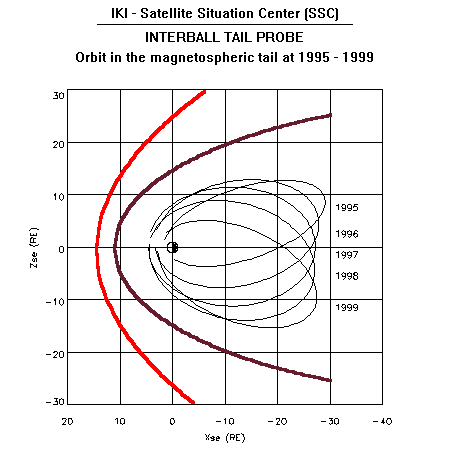

The evolution of the orbit position corresponding to the tail phase of different years are shown on the picture (click icon to make larg picture).

Back to the Top


The annual orbital situation for each year (1995 - 2000)

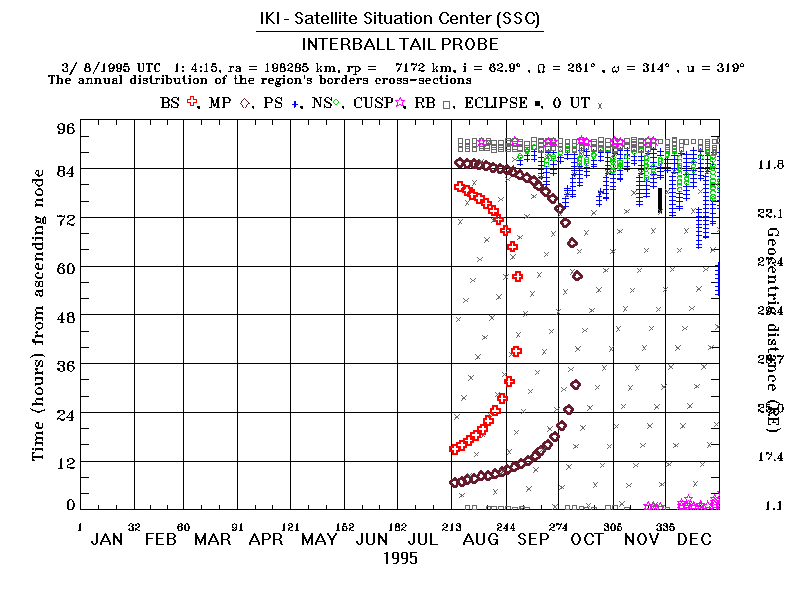

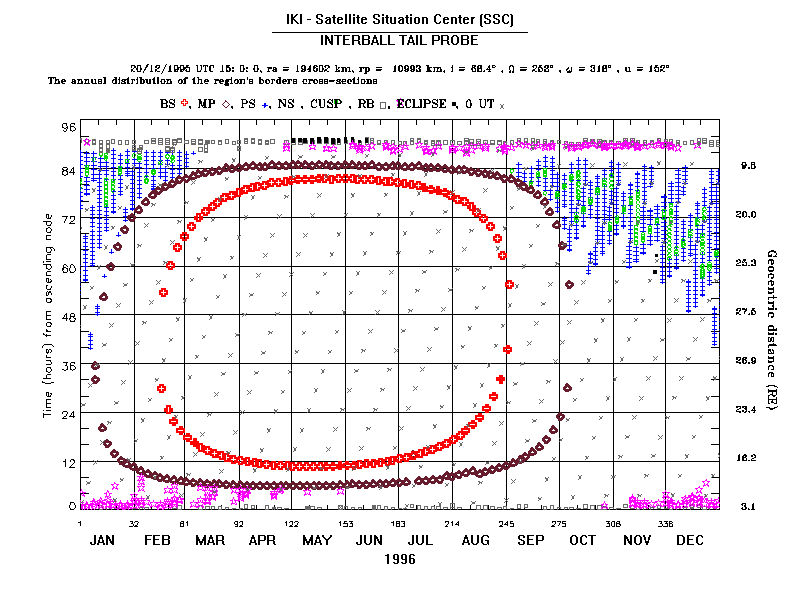

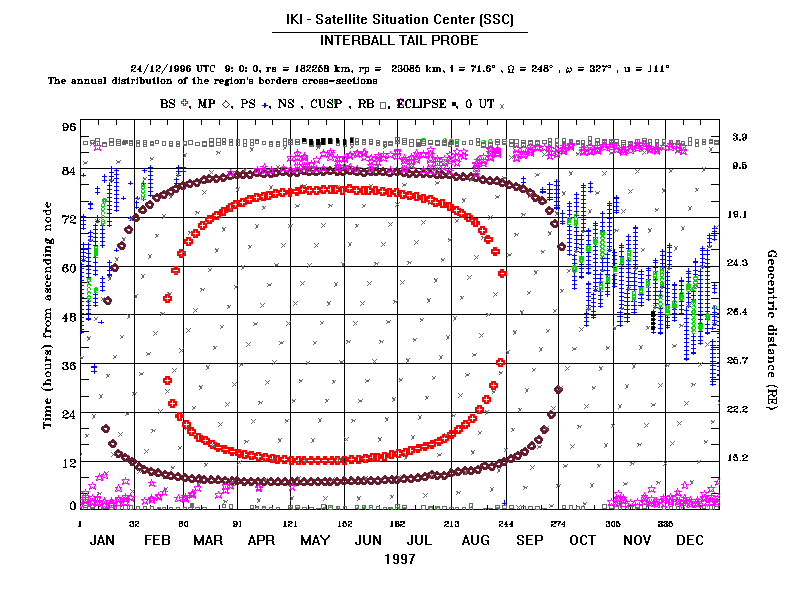

The annual time and space distribution of the covered by the orbit magnetospheric regions are shown for each year separately.

Click icons to reach more information for each year

Back to the Top


Back to the INTERBALL Home Page

Back to the IKI Satellite Situation Center (SSC) Home Page

Back to the Space Research Institute (IKI) Home Page


Dr. Victoria Prokhorenko
vprokhor@iki.rssi.ru
Satellite Situation Center, Senior Scientist
Profsoyuznaya 84/32,
Moscow 117810, Russia


Dated 8 September 1998
