image collection >> biological phenomena >> increased productivity
Image ers0206170118


Datatake
ERS-2 SAR
June 17, 2002
North-west Pacific
Okhotsk Sea

Comment
The image covers the Aniva Bay. During SAR sensing, atmospheric stratification was stable: the sea surface temperature (SST) was ≈11°C and air temperature was ≈15°C. Southern wind speed changed in a range of 2-5 m/s that is favorable for slick detection. Biogenic films are observed at a larger area of the Bay that reflects high biological activity during spring algal bloom. Due to weak winds, the surface films form structures which are driven by local hydrodynamic processes. Numerous eddies appear to have both cyclonic and anticyclonic rotation and most of their diameters are less than 10-12 km.

Supplementary data
Monthly chlorophyll-a concentration
(SeaWiFS, June 2000)

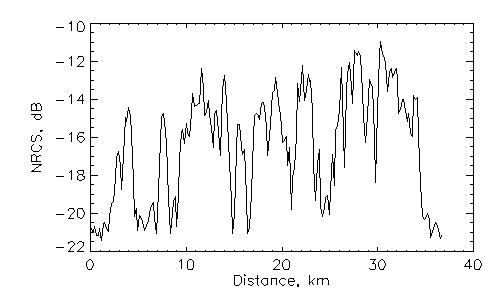

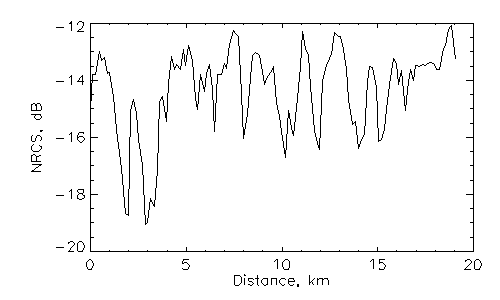

Image intensity profiles A and B

surface geometry : 100*100 km
image size: 680pxl*687pxl

Contacts:
Leonid Mitnik , Vyacheslav Dubina
