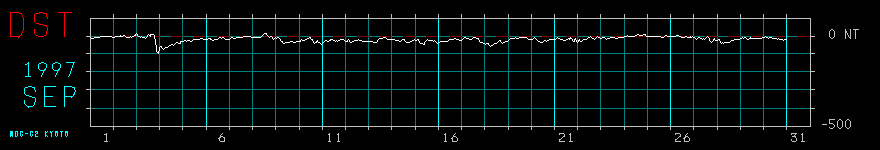

HOURLY VALUES OF EQUATORIAL DST INDEX (FINAL)         WDC-C2 FOR GEOMAGNETISM, KYOTO UNIVERSITY

SEPTEMBER 1997
                                                  Unit=nT, Time=number of the hour in UT day
      1   2   3   4   5   6   7   8    9  10  11  12  13  14  15  16   17  18  19  20  21  22  23  24
DAY
 1  -11 -12 -13 -12 -10 -11 -11 -10  -10  -9  -4  -1   0  -1  -2  -1    0  -1   0  -1  -1  -4  -6  -7
 2   -7  -4  -4  -3  -4  -3  -1   1    0   0   1   2  -2  -6  -6  -6   -6  -5  -6  -4   0   1   2  13
 3    9   0  -4  -6  -5  -7 -11 -11  -12  -6   0   6   2  -3   8  10   10   6   5 -19 -53 -89 -98 -78
 4  -60 -59 -71 -73 -70 -66 -64 -63  -57 -51 -51 -48 -48 -51 -48 -40  -35 -37 -40 -40 -40 -33 -30 -30
 5  -29 -27 -27 -29 -26 -26 -27 -29  -28 -23 -22 -19 -21 -22 -18 -17  -18 -15 -13 -15 -18 -18 -20 -21

 6  -19 -16 -16 -16 -20 -22 -23 -24  -22 -19 -19 -18 -12  -7  -6 -12  -10 -11 -14 -17 -17 -19 -20 -18
 7  -14 -11 -10 -12 -14 -13 -10  -7   -7  -6  -7 -10 -10  -8  -3   0   -2  -2  -2  -3  -4  -5 -10 -11
 8  -10  -8  -7  -7  -9 -10  -9  -9   -5   2  10  14  13  13   4  -3   -9  -5  -2  -2 -11 -17 -13 -11
 9  -12 -10 -11 -15 -21 -30 -33 -39  -41 -38 -38 -35 -34 -37 -30 -28  -29 -36 -37 -36 -29 -30 -32 -33
10  -28 -25 -22 -24 -27 -27 -22 -17  -16 -13  -8  -9 -18 -22 -29 -39  -38 -36 -26 -38 -38 -42 -49 -42

11  -34 -30 -25 -26 -28 -29 -26 -24  -21 -19 -21 -24 -27 -28 -25 -28  -26 -24 -22 -21 -21 -21 -24 -30
12  -32 -29 -22 -27 -34 -34 -30 -28  -26 -24 -23 -23 -22 -23 -25 -23  -27 -28 -30 -30 -30 -31 -30 -32
13  -30 -29 -30 -33 -36 -37 -38 -37  -29 -22 -15 -14 -13 -12 -10  -9   -9 -14 -19 -21 -22 -19 -19 -18
14  -19 -21 -22 -27 -24 -27 -26 -30  -32 -24 -19 -21 -20 -29 -34 -35  -35 -35 -30 -29 -27 -23 -22 -24
15  -25 -18 -20 -32 -39 -42 -40 -43  -48 -46 -33 -24 -22 -26 -27 -26  -26 -25 -28 -27 -29 -35 -39 -36

16  -34 -33 -32 -32 -30 -30 -30 -30  -28 -23 -18 -18 -19 -18 -20 -20  -16 -15 -18 -19 -22 -25 -24 -25
17  -21 -15 -10 -11 -12 -14 -16 -17  -18 -20 -16 -11  -8 -10 -12 -13  -14 -24 -34 -38 -38 -37 -42 -43
18  -45 -40 -43 -44 -53 -56 -55 -54  -48 -43 -40 -39 -37 -31 -27 -25  -34 -39 -38 -36 -33 -32 -30 -26
19  -21 -16 -13 -12 -13 -12 -12 -11  -12 -12 -13 -10  -8  -8  -7  -9   -7  -8 -11 -16 -18 -17 -19 -20
20  -18 -15 -11 -15 -20 -24 -28 -32  -35 -38 -35 -34 -30 -27 -27 -28  -26 -23 -19 -19 -18 -19 -21 -22

21  -19 -13  -8 -12 -14 -17 -18 -18  -25 -23 -24 -21 -17 -16 -17 -10  -12 -15 -19 -29 -32 -14 -27 -36
22  -30 -19 -28 -30 -25 -22 -22 -19  -18 -14  -8  -7  -5  -8 -14 -16  -17 -15  -7  -4  -6  -9 -12 -15
23  -14 -11  -7  -9 -12 -17 -14 -14  -12 -10 -10  -9  -8  -8 -12 -12  -12 -11 -11 -10  -6  -7  -7  -4
24   -4   0   1   0  -1  -2  -2  -3   -2   0  -1   1   5   8   6   5    5   4   4   6   6   6   0  -4
25   -5  -4  -3  -5  -4  -3  -2  -1   -1  -1  -1  -1   0   0  -6  -9   -7  -3   2   1  -2  -3  -4  -3

26   -4  -5  -5  -3  -1   1   2   1   -1  -3  -6  -9 -10  -8  -5  -5   -6 -10  -9  -8  -5  -8  -5  -6
27   -9 -14 -17 -13  -8  -9 -12 -14  -17 -16 -17 -12  -7  -3 -11 -15  -28 -36 -33 -24 -13 -24 -26 -26
28  -20 -17 -28 -36 -39 -38 -42 -38  -37 -35 -36 -37 -35 -28 -24 -26  -25 -22 -20 -19 -20 -21 -19 -14
29  -12 -11 -13 -11 -11 -12 -18 -17  -16 -11 -12 -14 -16 -16 -15 -13  -13 -13 -13 -13 -12 -13 -11 -10
30   -7  -5  -6 -10 -13 -11  -9  -8  -15 -13 -16 -15 -16 -18 -16 -17  -20 -20 -18 -21 -25 -21 -20 -18
