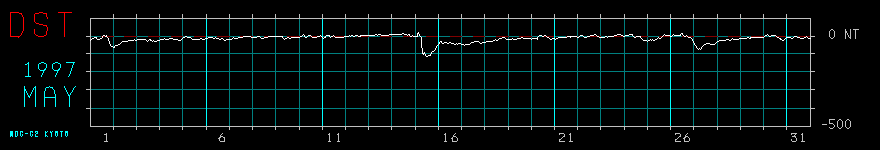

HOURLY VALUES OF EQUATORIAL DST INDEX (FINAL)         WDC-C2 FOR GEOMAGNETISM, KYOTO UNIVERSITY

      MAY 1997
                                                  Unit=nT, Time=number of the hour in UT day
      1   2   3   4   5   6   7   8    9  10  11  12  13  14  15  16   17  18  19  20  21  22  23  24
DAY
 1  -25 -21 -16 -12 -10  -6 -10 -17  -18 -18 -14 -12  -9   2   5  -1    4 -10 -12 -30 -48 -56 -56 -63
 2  -64 -55 -53 -51 -49 -48 -44 -40  -35 -30 -31 -31 -31 -32 -30 -26  -27 -26 -27 -27 -25 -22 -24 -24
 3  -19 -19 -19 -18 -19 -19 -18 -19  -19 -24 -28 -27 -21 -19 -24 -27  -30 -26 -28 -30 -28 -26 -23 -23
 4  -22 -21 -20 -18 -16 -17 -20 -19  -17 -16 -15 -15 -16 -21 -20 -19  -18 -20 -23 -23 -25 -24 -18 -13
 5  -11 -11  -5  -5  -9 -10 -11 -11  -16 -18 -17 -21 -19 -18 -18 -20  -18 -16 -15 -18 -20 -19 -16 -14

 6  -13 -11  -8  -6  -6 -10 -11 -12  -12 -11 -12 -14 -16 -17 -17 -16  -15 -17 -23 -23 -21 -19 -21 -19
 7  -19 -18 -16 -11 -12 -13 -14 -14  -11 -10  -9  -8  -8  -6  -4  -2   -4  -4  -3  -3  -1  -5  -9  -9
 8   -8  -8  -6  -6  -4  -4  -4  -8  -12 -14 -12 -11  -9  -7  -6  -3   -4  -2  -1  -2  -1   0   0  -2
 9   -1   0  -2  -5  -4  -3  -5 -12  -17 -15 -12  -9 -11 -13 -13 -11   -8  -7 -10 -11 -11 -10  -7  -6
10   -4  -3  -1   3   6   2  -6  -8   -4   2   4   1  -4  -9  -8  -6   -6  -6  -4  -4  -3   1  -4  -9

11  -13 -11  -6   1   4   3   3  -8   -7  -3  -1   1  -2  -6  -7  -8   -8  -7  -7  -8  -8  -7  -5  -3
12   -2  -1   0   1   0   1   2   0    0   2   3   2   0  -1   0   1    1   1   4   3   4   4   5   4
13    4   4   4   5   4   4   6   7    5   8   8   7   5   4   4   3    3   1   1   3   6   8   7   6
14    8   9   9   8   7   7   6   7    7  10  12  12   8   6   6   4    8   6  -2   0   2  -1  -2  -4
15   -3  -1  18   9  -1   0  -9 -70 -100 -90-102-114-115-111-111-107  -95 -88 -84 -78 -74 -64 -51 -50

16  -42 -29 -31 -39 -41 -38 -34 -38  -40 -40 -36 -34 -35 -41 -44 -44  -47 -45 -44 -45 -44 -44 -43 -45
17  -48 -49 -51 -50 -48 -46 -46 -45  -44 -37 -34 -35 -33 -33 -31 -29  -30 -35 -40 -40 -39 -36 -34 -35
18  -35 -31 -30 -31 -31 -33 -32 -31  -27 -24 -22 -23 -23 -17 -13 -16  -16 -10  -8 -10 -13 -17 -21 -21
19  -20 -21 -19 -18 -16 -17 -20 -20  -20 -16 -14 -12 -12  -9  -9 -12  -12 -15 -16 -16 -16 -16 -16 -18
20  -16 -16 -15 -15 -16 -17  -3   1    3   4   5   0  -2   1   1  -1   -9 -11 -13 -17 -17 -13 -13 -15

21  -17 -15 -12 -10  -9  -8 -10  -9  -10 -10  -8  -6  -4  -3  -1  -4   -7  -5  -1  -3  -5  -5  -5  -6
22   -7  -5   1   2   2  -2  -6  -7   -6  -4  -2   0   3   4   4   5    8   9   4  -2  -4  -7  -9 -10
23   -9  -8  -8  -6  -5  -4  -6  -4   -3  -4  -4  -3  -2   2   3   4    6   7   7   6   4   3   0  -3
24    2   3   4   5   7   9  10  11    7  -1  -7  -6  -4  -3  -2   0   -5 -14 -21 -24 -25 -23 -25 -29
25  -26 -24 -22 -23 -21 -23 -23 -21  -17 -13 -11 -12 -13 -12  -8   0    4   6   5   4   3   2   2  -1

26    0   4   6   4   2   2   3   3    1   2  12  12   4   0  -1   2   -3  -7 -10 -11 -11 -12 -18 -29
27  -41 -51 -58 -68 -73 -71 -73 -67  -58 -53 -50 -45 -42 -40 -40 -41  -45 -47 -49 -49 -45 -41 -37 -31
28  -31 -26 -23 -25 -24 -24 -23 -23  -24 -22 -21 -22 -27 -24 -19 -16  -17 -17 -19 -20 -18 -17 -15 -14
29  -15 -14 -14 -14 -13 -13 -11 -10  -12 -12 -11 -11 -11 -11 -11 -11  -11  -9  -7  -7  -7  -6  -8  -6
30   -2   2   5   6   2  -2  -4   1    2   4   5   3  -1  -6  -7 -13  -14 -18 -19 -23 -26 -20 -12  -7

31   -7  -9 -11 -11 -15 -13  -8  -4   -3  -5  -7  -8 -10 -12 -14 -13  -15 -10  -9  -4  -8 -12 -12 -14
