IKI RAN Radar Image Collection
Oceanic phenomena / Upwelling

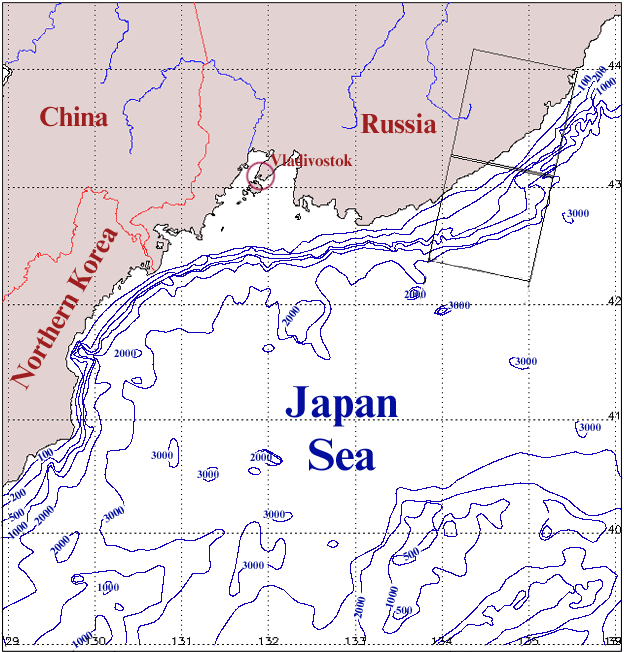

Image Preview/ Location map

Image name ERSC9709160149
Platform/Sensor ERS-2/SAR
Flight altitude/speed 785 km/6.8 km/s
Image partition Preview file is a strip of two frames
Wavelength(s)/Frequency(ies)/Band(s) 0.057 /5.3/C
Polarization(s) VV
Incidence angle(s) 23°
Calibration Preview image: black is lowest NRCS, white is highest NRCS
Full images: PRI format
Date/Time 16.09.97 / 01:49
Area Northwestern Japan Sea
Coordinates 44.171°N, 134.367°E, 43.985°N, 135.567°E
42.382°N, 133.852°E, 42.198°N, 135.014°E
Surface geometry 2 frames 100x102 km = 100 x 204 km
Other signatures seen in the image None from the list of interest

Supplementary information

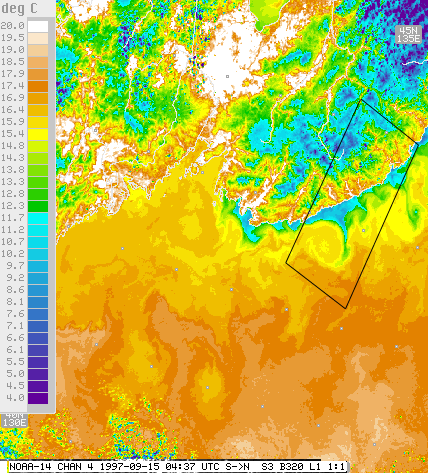

AVHRR NOAA

Source image :  image size: 2*(8000*8200)=8000*16400; pixel = 16 bits; pixel size: 12.5 x 12.5; file size: 2*128 Mb = 256 Mb
Contact: Leonid Mitnik; Vyacheslav Dubina
