IKI RAN Radar Image Collection
Oceanic phenomena / Ship wakes

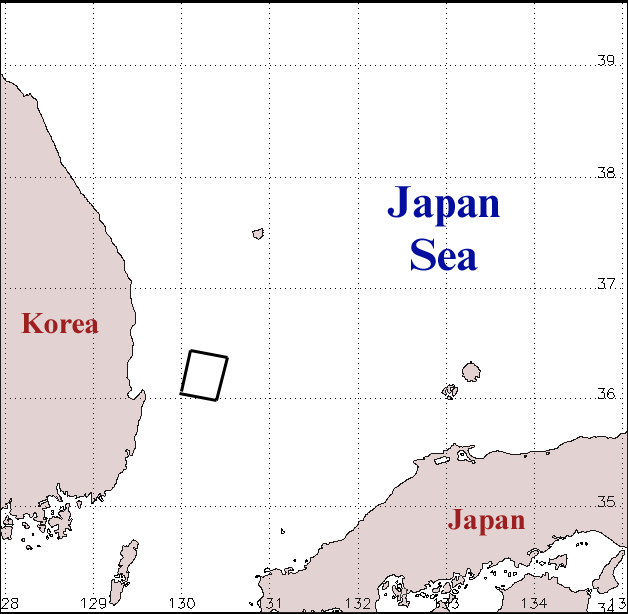

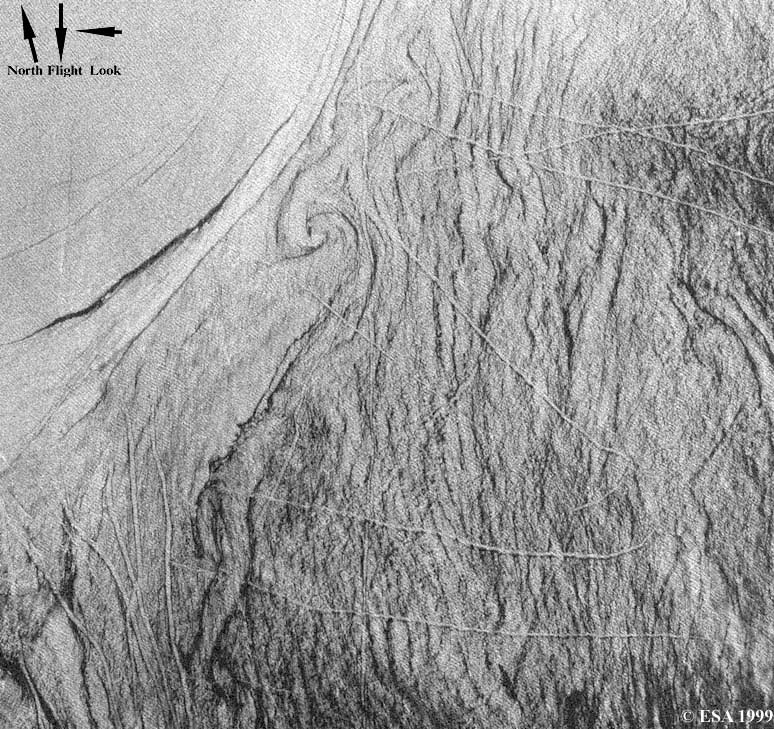

Image Preview/ Location map

Image name ERSC9909270202
Platform/Sensor ERS/SAR
Flight altitude/speed 785 km/6.8 km/s
Image partition No
Wavelength(s)/Frequency(ies)/Band(s) 0.057/5.3/C
Polarization(s) VV
Incidence angle(s) 23°
Calibration PRI format
Date/Time 27.09.99/02:02
Area Southern Japan Sea, Korea Strait
Coordinates 37.065° N, 129.573° E; 36.884° N, 130.653° E;
36.161° N, 129.341° E; 35.980° N, 130.406° E
Surface geometry  ~20x20 km fragment of 100x102 km image
Other signatures seen in the image Oceanic eddies, swell

Supplementary information:

Source image:  full image size: 7852x8208 pixels; pixel size: 12.5 x 12.5 m, full image file size: 128Mb

Owner: POI DVO RAS, contact: Leonid Mitnik; Vyacheslav Dubina

References:
