IKI RAN Radar Image Collection
Oceanic phenomena / Ship wakes

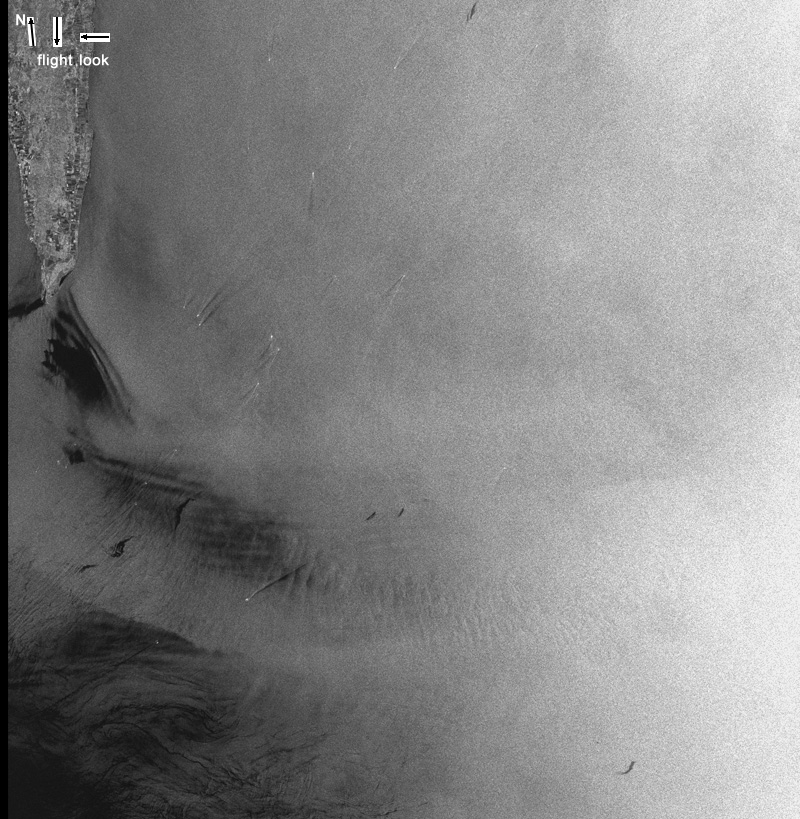

Image Preview

Image name ERSC9906180953
Platform/Sensor ERS-2/SAR
Flight altitude/speed 785 km / 6.8 km/s
Image partition No
Wavelength(s)/Frequency(ies)/Band(s) 0.057 /5.3/C
Polarization(s) VV
Incidence angle(s) 23°
Calibration Preview image: black is lowest NRCS, white is highest NRCS
Full images: PRI format
Date/Time 06.18.99 / 09:53
Area Baltic Sea
Coordinates 56°31'N, 16°24'E; 56°18'N, 17°58'E;
55°38'N, 16°03'E; 55°26'N, 17°34'E
Surface geometry 100x102 km
Other signatures seen in the image Oil pollution

Supplementary information

Hydrometeorological data:
wind: dir. 285°, speed 2.1 m/s
temperature: air 19.2°C, water 21.4°C
sea waves: 0 points

Source image :
image size: 8000*8200 pixels; 1 pixel = 16 bits; pixel size: 12.5 x 12.5; file size: 128 Mb

Owner: IKI RAS, contact: O.Lavrova
