IKI RAN Radar Image Collection
Oceanic phenomena / Sea ice

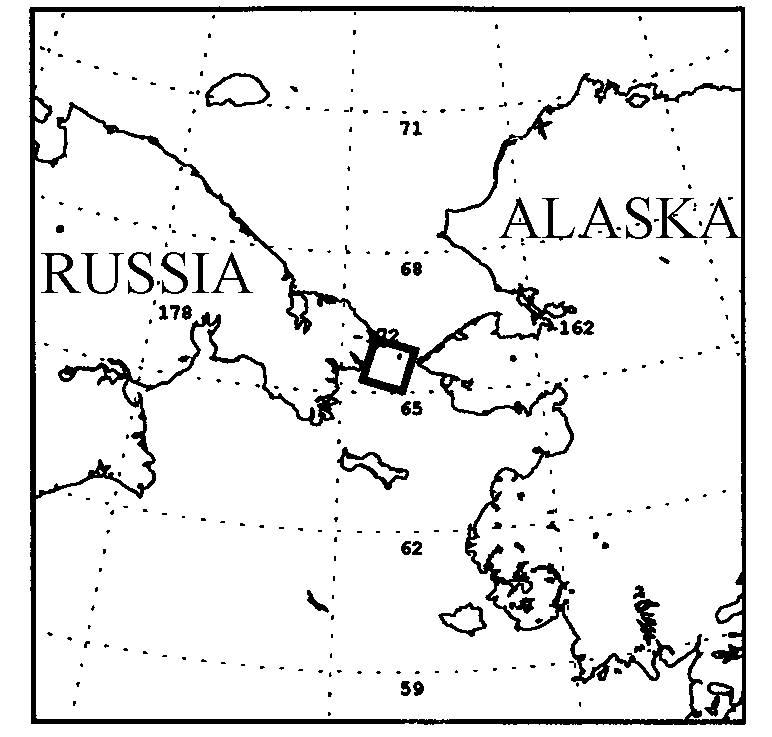

Image Preview/ Location map

Image name ERSC9504132235
Platform/Sensor ERS-1/SAR
Flight altitude/speed 785 km/6.8 km/s
Image partition No
Wavelength(s)/Frequency(ies)/Band(s) 0.057 /5.3/C
Polarization(s) VV
Incidence angle(s) 23°
Calibration Preview image: black is lowest NRCS, white is highest NRCS
Full images: PRI format
Date/Time 13.04.95 / 22:35
Area The Bering Strait
Coordinates 66.152°N, 169.606°W, 65.899°N, 167.529°W
65.026°N, 168.197°W, 65.272°N, 170.207°W
Surface geometry 100 x 102 km
Other signatures seen in the image None

Supplementary information

Bottom topography map

Source image :  image size: 7860pxl*8160pxl; pixel = 16 bits; pixel size: 12.5 x 12.5; file size: 128Mb
Contact: Olga Lavrova
