IKI RAN Radar Image Collection
Oceanic phenomena / Internal waves

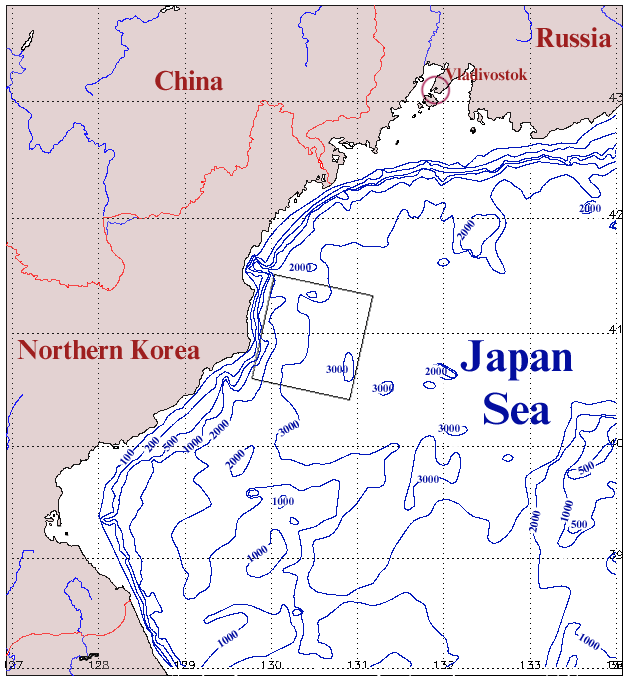

Image Preview/ Location map

Image name ERSC0009300204
Platform/Sensor ERS-2/SAR
Flight altitude/speed 785 km/6.8 km/s
Image partition No
Wavelength(s)/Frequency(ies)/Band(s) 0.057/5.3/C
Polarization(s) VV
Incidence angle(s) 23°
Calibration Preview image: black is lowest NRCS, white is highest NRCS
Full images: PRI format
Date/Time 30.09.00 / 02:04
Area Northwestern Japan Sea
Coordinates 41.511°N, 130.036°E, 41.327°N, 131.187°E
40.607°N,129.786°E, 40.424°N, 130.920°E
Surface geometry 100x102 km
Other signatures seen in the image No

Supplementary information

Source image :  image size: 7864*8213 pixels; 1 pixel = 16 bits; pixel size: 12.5 x 12.5 m*m; file size: 128 Mb
Contact: Leonid Mitnik; Vyacheslav Dubina
