IKI RAN Radar Image Collection
Oceanic phenomena / Oceanic fronts

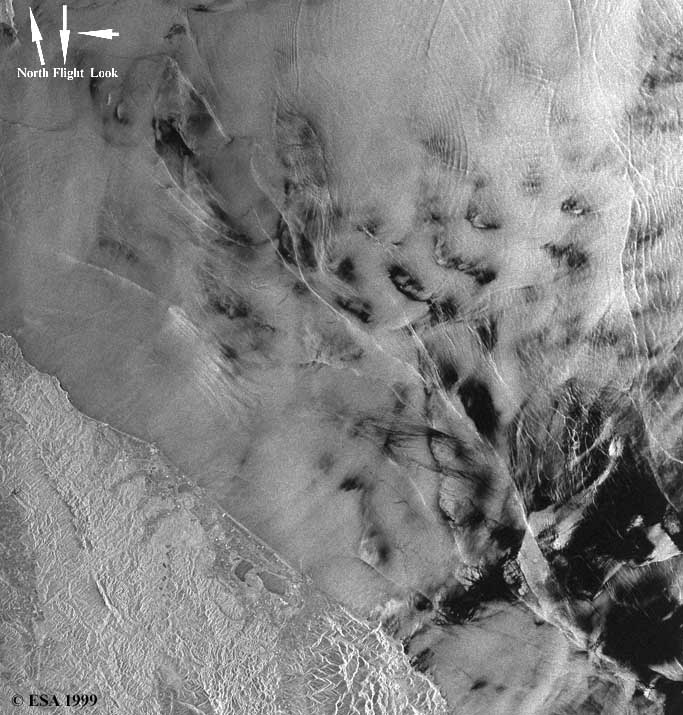

Preview/
Location map
|
Image name
|
ERSC9908020119
|
| Platform/Sensor |
ERS-2/SAR |
| Flight altitude/speed |
785 km/6.8 km/s |
| Image partition |
No
|
| Wavelength(s)/Frequency(ies)/Band(s) |
0.057/5.3/C |
| Polarization(s) |
VV |
| Incidence angle(s) |
23° |
| Calibration |
Preview image: black is lowest NRCS, white is highest NRCS
Full images: PRI format |
| Date/Time |
02.08.99 / 01:19 |
| Area |
Southern Okhotsk Sea, Soya Current Front |
| Coordinates |
45.941°N, 142.058°E, 45.754°N, 143.291°E
45.040°N,141.786°E, 44.854°N, 142.998°E |
| Surface geometry |
100x102 km |
| Other signatures seen in the image |
Oceanic internal waves |
Supplementary information

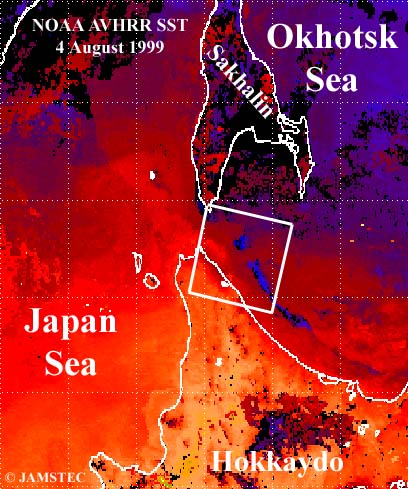

AVHRR NOAA
Source image :
image size: 7864*8213 pixels; 1 pixel = 16 bits; pixel size: 12.5 x 12.5 m*m;
file size: 128 Mb
Contact: Leonid Mitnik; Vyacheslav Dubina
References:
L.Mitnik, V.Dubina, Y. Sugimori, Dynamic features of the Soya Warm Current as seen by ERS synthetic aperture radar // Proc. The 17th International Symposium on Okhotsk Sea &Sea Ice, Mombetsu, Hokkaido, Japan, 2002. pp. 74-81.
