IKI RAN Radar Image Collection
Oceanic phenomena / Oceanic eddies

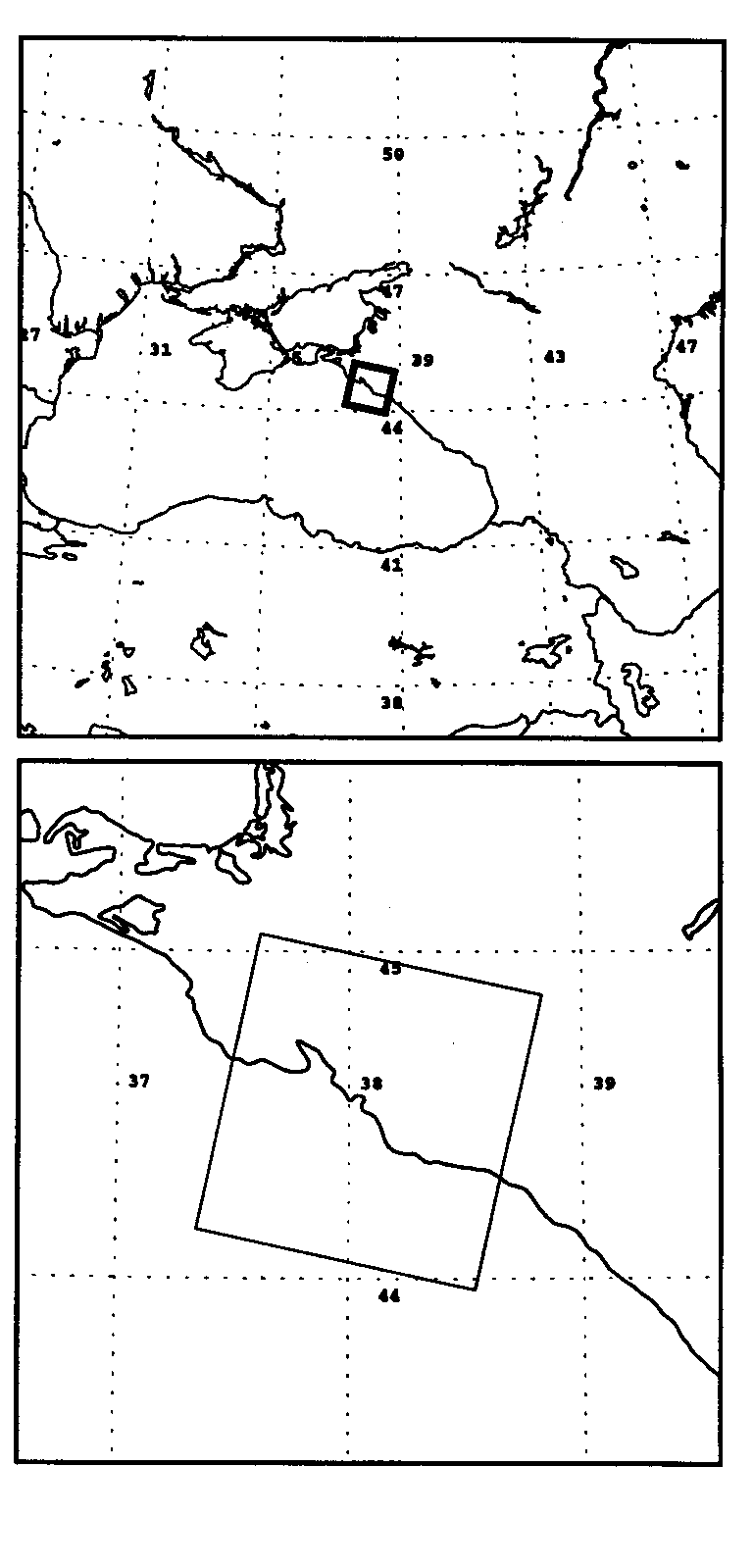

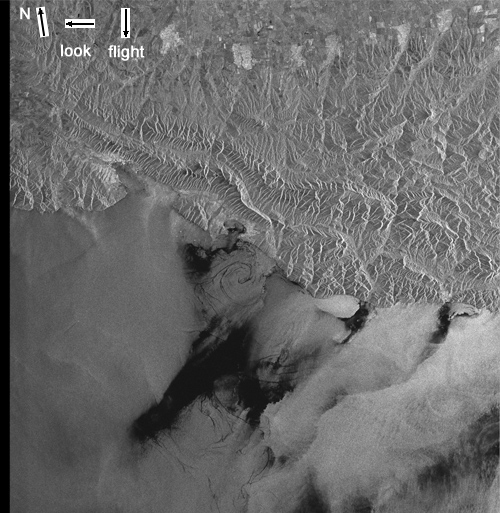

Image Preview/ Location map

Image name ERSC9810160816
Platform/Sensor ERS/SAR
Flight altitude/speed 785 km/6.8 km/s
Image partition No
Wavelength(s)/Frequency(ies)/Band(s) 0.057/5.3/C
Polarization(s) VV
Incidence angle(s) 23°
Calibration PRI format
Date/Time 16.10.98/08:16
Area Black Sea
Coordinates 45.053° N, 37.612° E; 44.867° N, 38.828° E;
43.966° N, 38.540° E; 44.151° N, 37.345° E
Surface geometry  100 x 102.5 km
Other signatures seen in the image None from the list of interest

Supplementary information:

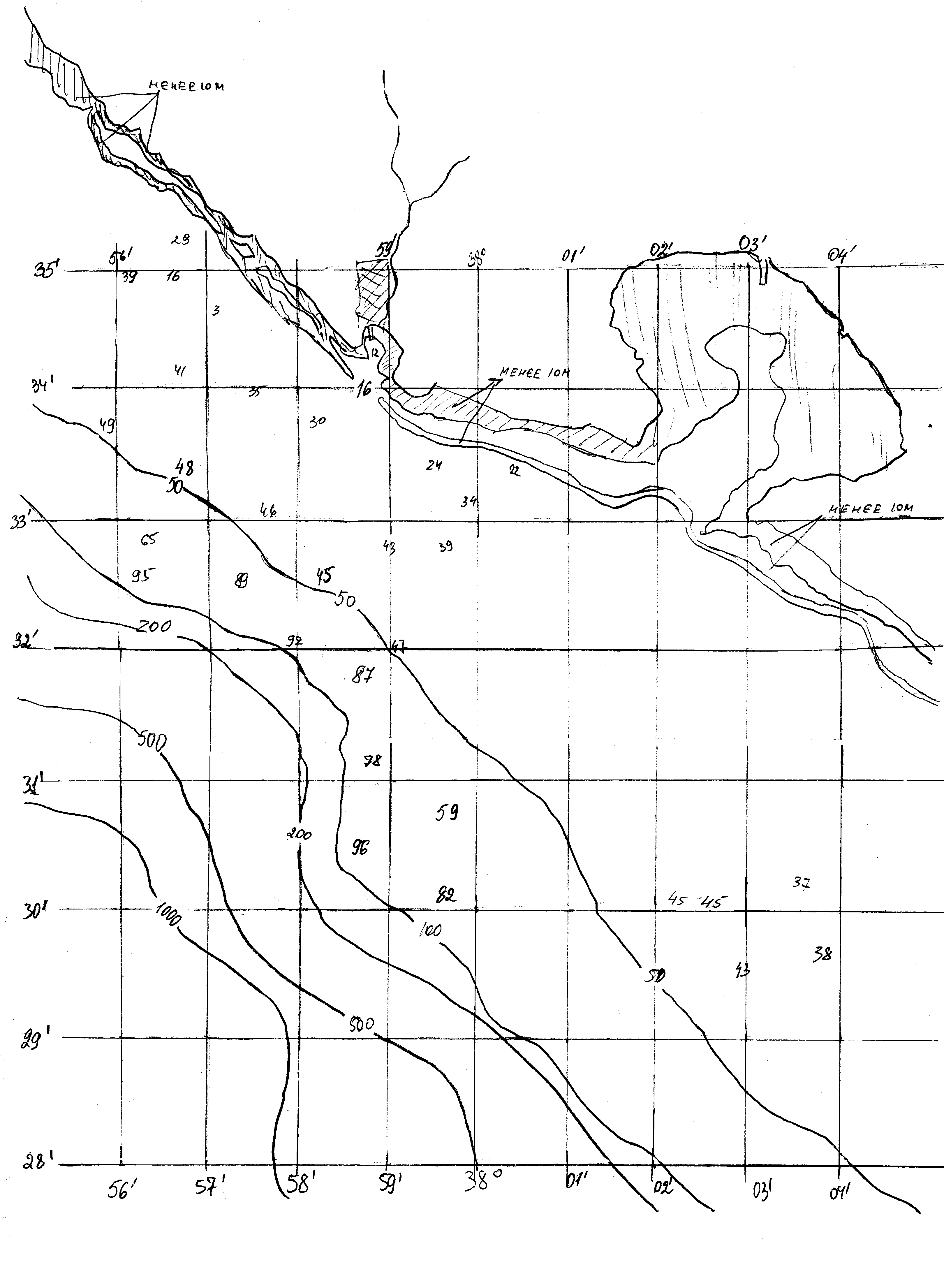

bottom topography chart

Source image:  image size: 8000x8200 pixels; pixel size: 12.5 x 12.5 m, file size: 128Mb

Owner: IKI RAS, contact: mityag@mx.iki.rsi.ru

References:
