IKI RAN Radar Image Collection
Oceanic phenomena / Oceanic eddies

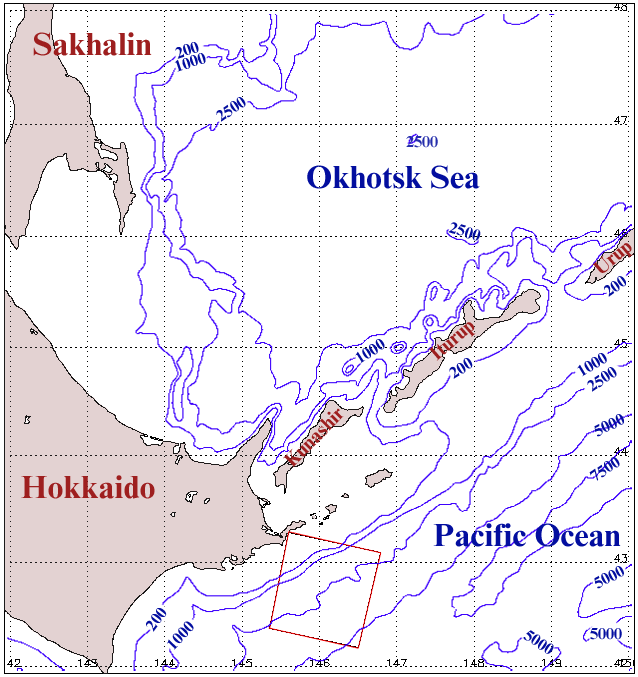

Image Preview/ Location map

Image name ERSC9509220103
Platform/Sensor ERS-1/SAR
Flight altitude/speed 785 km/6.8 km/s
Image partition No
Wavelength(s)/Frequency(ies)/Band(s) 0.057/5.3/C
Polarization(s) VV
Incidence angle(s) 23°
Calibration Preview image: black is lowest NRCS, white is highest NRCS
Full images: PRI format
Date/Time 22.09.95 / 01:03
Area Northwestern Pacific
Coordinates 43.275°N, 145.605°E; 43.090°N, 146.784°E;
42.372°N, 145.347°E; 42.188°N, 146.508°E
Surface geometry 100x102 km
Other signatures seen in the image None from the list of interest

Supplementary information

AVHRR NOAA

Source image :  image size: 7840pxl*8212pxl; pixel = 16 bits; pixel size: 12.5 x 12.5; file size: 128Mb
Contact: Leonid Mitnik; Vyacheslav Dubina
