IKI RAN Radar Image Collection
Oceanic phenomena
/ Oceanic eddies

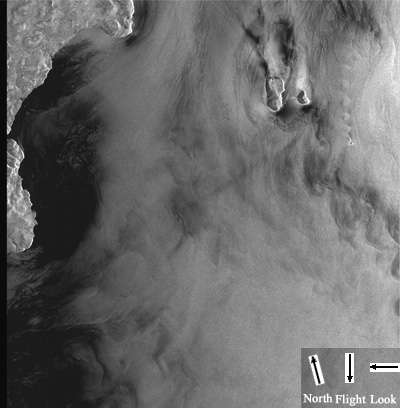

Preview/

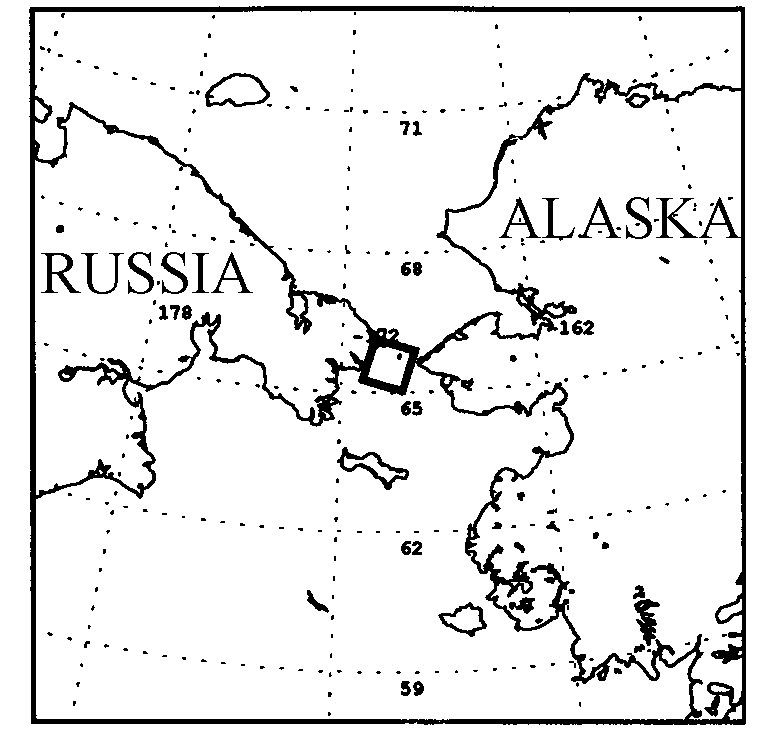

Location map
|
Image name
|
ERSC950711223821
|
| Platform/Sensor |
ERS-1/SAR |
| Flight altitude/speed |
785 km/6.8 km/s |
| Image partition |
No
|
| Wavelength(s)/Frequency(ies)/Band(s) |
0.057/5.3/C |
| Polarization(s) |
VV |
| Incidence angle(s) |
23° |
| Calibration |
Preview image: black is lowest NRCS, white is highest NRCS
Full images: PRI format |
| Date/Time |
11.07.95 / 22:38:21 |
| Area |
The Bering Strait |
| Coordinates |
66.152°N, 170.330°W; 65.899°N, 168.254°W;
65.273°N, 170.930°W; 65.027°N, 168.920°W |
| Surface geometry |
100x102 km |
| Other signatures seen in the image |
Bottom topography features |
Supplementary information

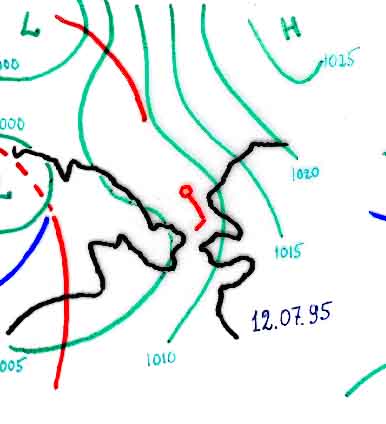

Weather map

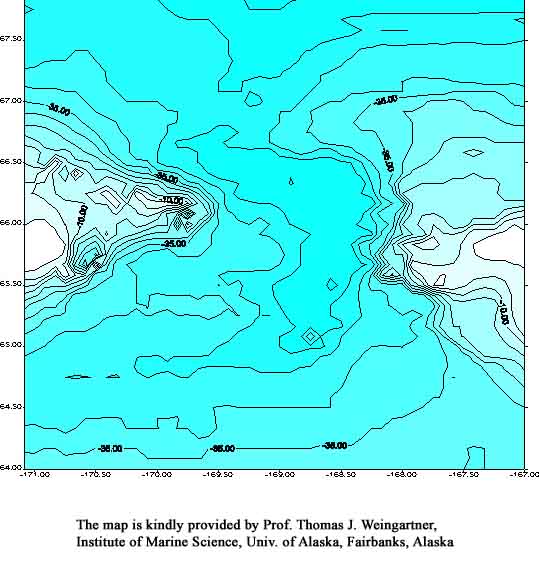

Bottom topography map
Source image :
image size: 8006pxl*8164pxl; pixel = 16 bits; pixel size: 12.5 x 12.5;
file size: 128Mb
Contact: Olga Lavrova
References:
O.Lavrova, K.Sabinin, Manifestations of sea currents and eddies in ERS-SAR images of the Bering Strait // ERS-ENVISAT Symposium, Gothenburg, Sweden, 16-20 October 2000
