IKI RAN Radar Image Collection
Oceanic phenomena / Oceanic eddies

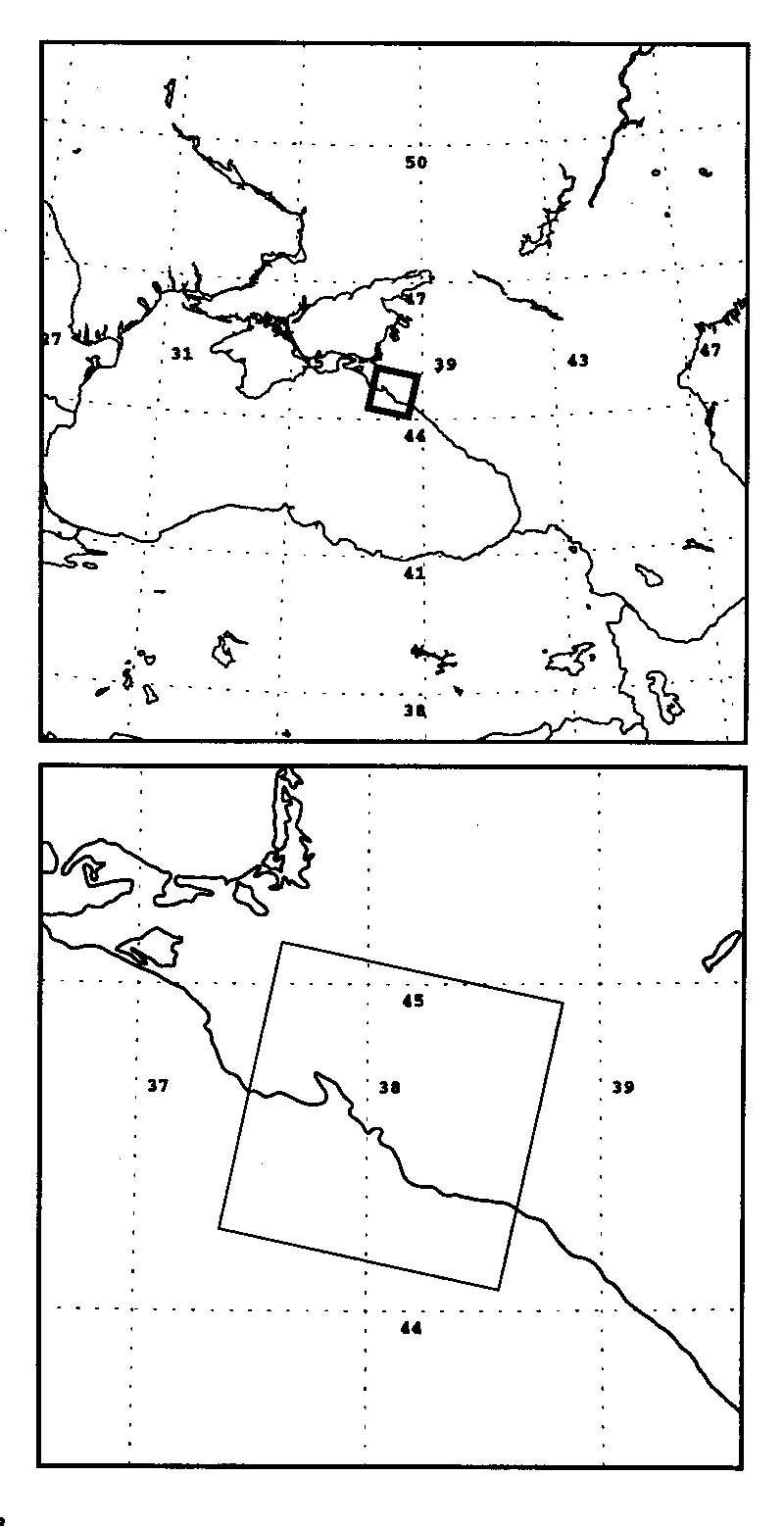

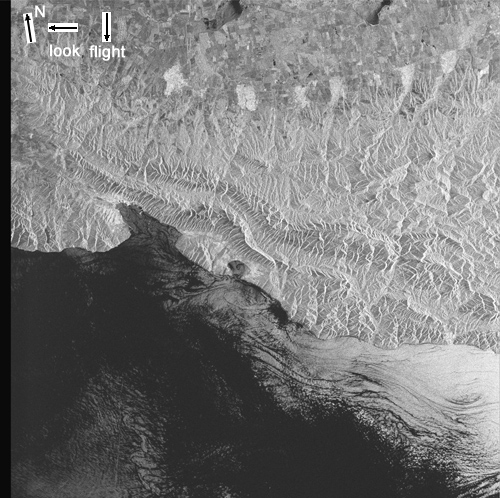

Image Preview/ Location map

Image name ERSC0107270815
Platform/Sensor ERS/SAR
Flight altitude/speed 785 km/6.8 km/s
Image partition No
Wavelength(s)/Frequency(ies)/Band(s) 0.057/5.3/C
Polarization(s) VV
Incidence angle(s) 23°
Calibration PRI format
Date/Time 27.07.01/08:15
Area Black Sea
Coordinates 45.127° N, 37.627° E; 44.941° N, 38.841° E;
44.065° N, 38.562° E; 44.250° N, 37.367° E
Surface geometry  100 x 102.5 km
Other signatures seen in the image None from the list of interest

Supplementary information:

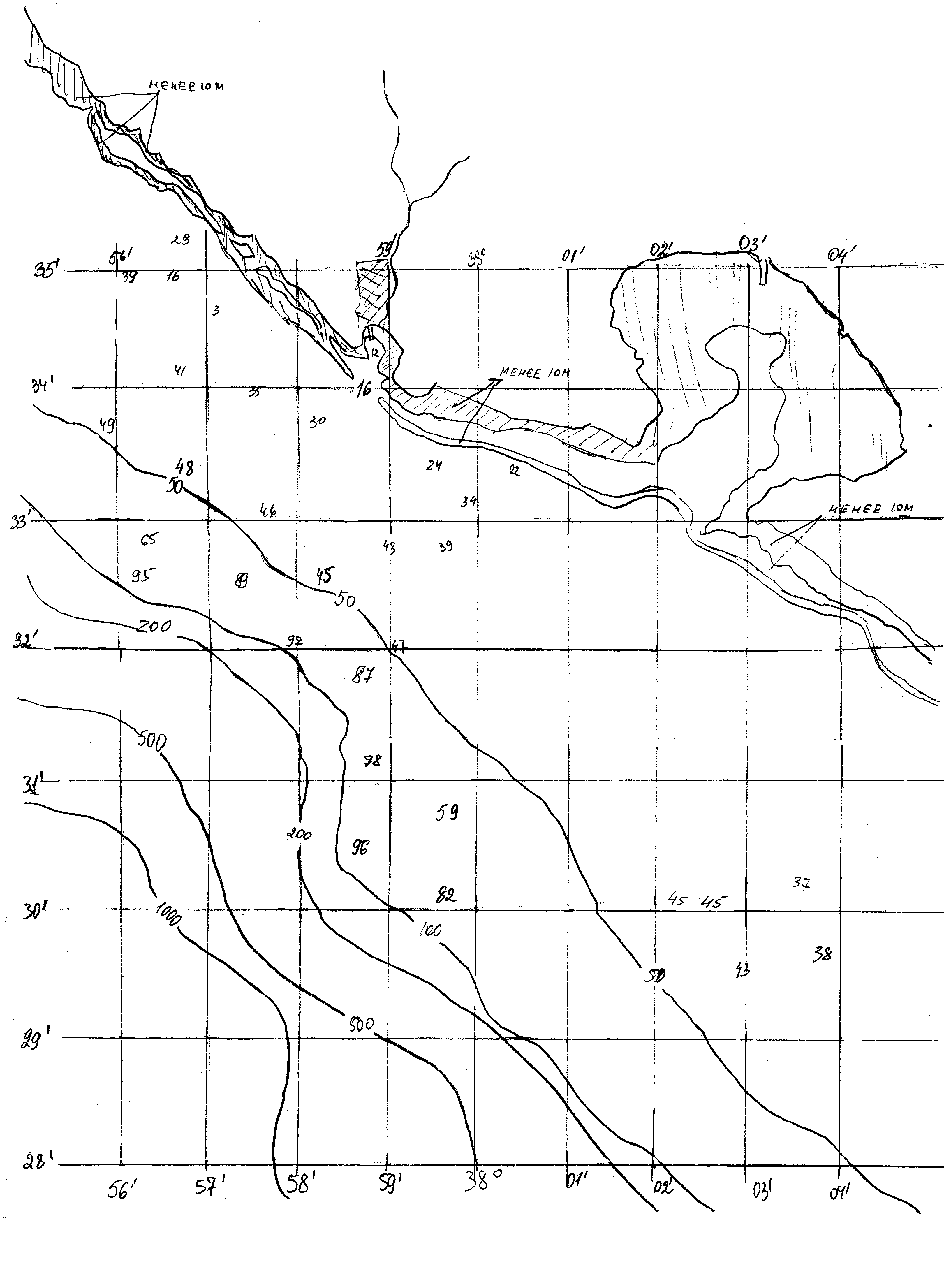

bottom topography chart

Source image:  image size: 8000x8200 pixels; pixel size: 12.5 x 12.5 m, file size: 128Mb

Owner: IKI RAS, contact: mityag@mx.iki.rsi.ru
