IKI RAN Radar Image Collection
Oceanic phenomena
/ Underwater bottom topography
Preview/

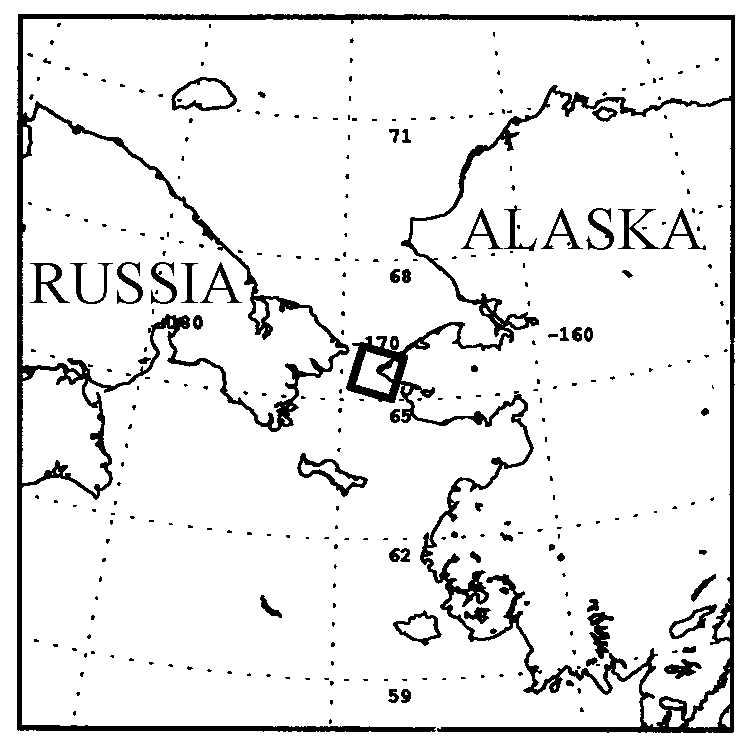

Location map
|
Image name
|
ERSC980802223229
|
| Platform/Sensor |
ERS-2/SAR |
| Flight altitude/speed |
785 km/6.8 km/s |
| Image partition |
No
|
| Wavelength(s)/Frequency(ies)/Band(s) |
0.057/5.3/C |
| Polarization(s) |
VV |
| Incidence angle(s) |
23° |
| Calibration |
Preview image: black is lowest NRCS, white is highest NRCS
Full images: PRI format |
| Date/Time |
02.08.98 / 22:32:29 |
| Area |
The Bering Strait |
| Coordinates |
66.157°N, 168.892°W; 65.904°N, 166.814°W;
65.277°N, 169.492°W; 65.031°N, 167.482°W |
| Surface geometry |
100x102 km |
| Other signatures seen in the image |
None from the list of interest |
Supplementary information

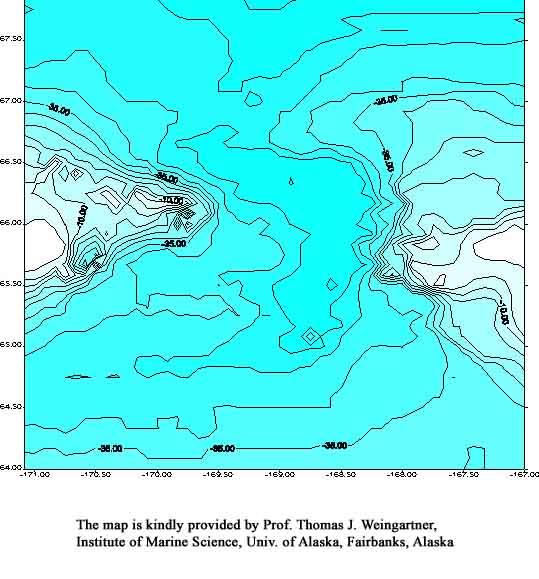

Bottom topography map
Source image :
image size: 8006pxl*8164pxl; pixel = 16 bits; pixel size: 12.5 x 12.5;
file size: 128Mb
Contact: Olga Lavrova
References:
O.Lavrova, K.Sabinin, SAR observation of dynamic processes in the Bering Strait // Pacific Ocean Remote Sensing Conference (PORSEC'2000), Goa, India, 5-8 December, 2000
