IKI RAN Radar Image Collection
Atmospheric phenomena / Atmospheric internal waves

Image Preview/ Location map

Image name ERSC9904271327
Platform/Sensor ERS-2/SAR
Flight altitude/speed 785 km/6.8 km/s
Image partition No
Wavelength(s)/Frequency(ies)/Band(s) 0.057 /5.3/C
Polarization(s) VV
Incidence angle(s) 23°
Calibration Preview image: black is lowest NRCS, white is highest NRCS
Full images: PRI format
Date/Time 27.04.99 / 13:27
Area Northwestern Japan Sea
Coordinates 43.329°N, 130.783°E, 43.515°N, 131.971°E
41.721°N, 131.249°E, 41.906°N, 132.410°E
Surface geometry 2 frames 100 x 102 km = 100x204 km

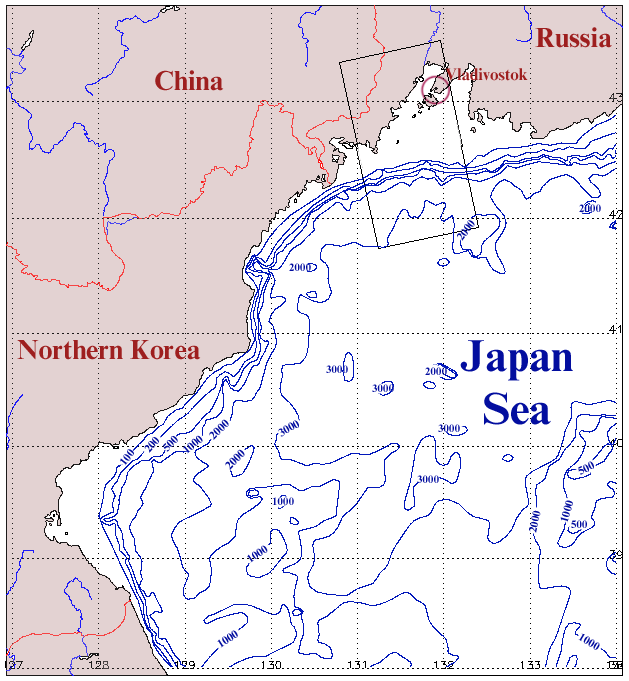

Location map Available
Other signatures seen in the image No

Supplementary information

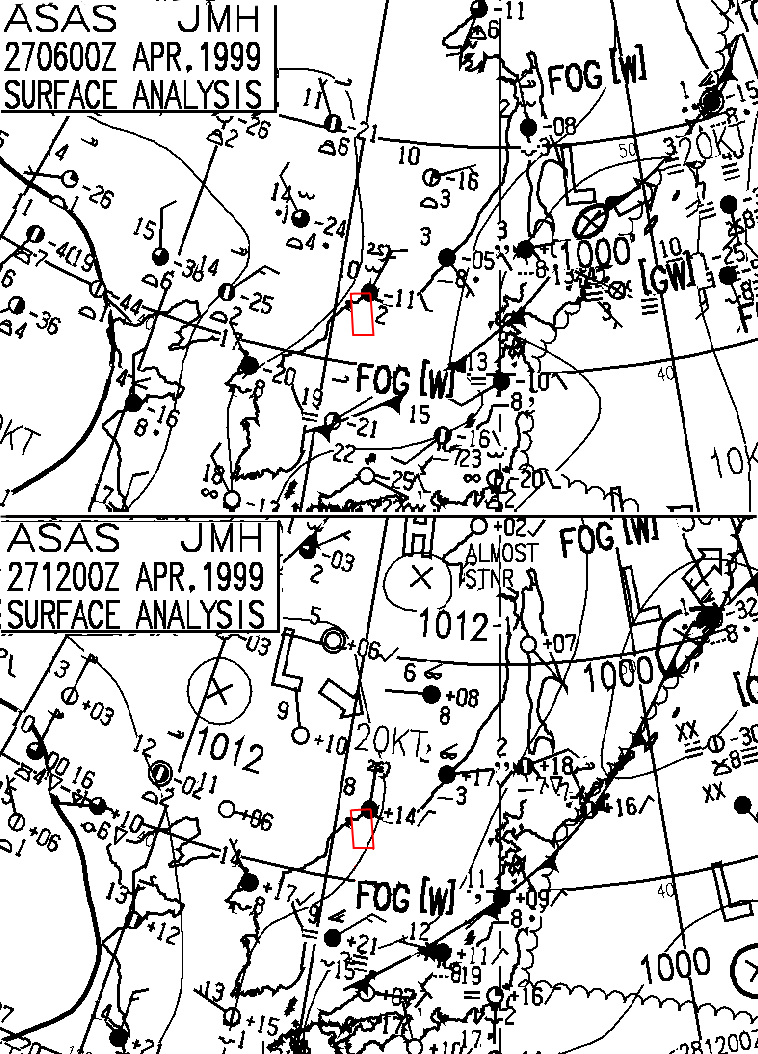

Weather maps

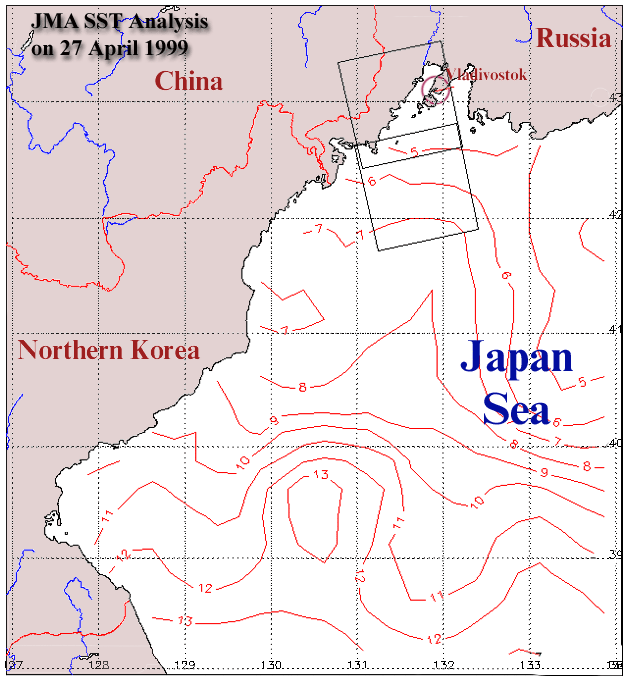

SST analysis

Source image :  image size: 2*(8000*8200) = 8000x16400 pxl; pixel = 16 bits; pixel size: 12.5 x 12.5 m; file size: 128*2=256 Mb
Contact: Leonid Mitnik; Vyacheslav Dubina
