IKI RAN Radar Image Collection
Atmospheric phenomena
/
Atmospheric
fronts
Preview/

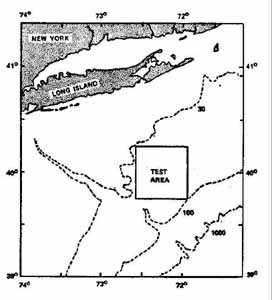

Location map
|
Image name
|

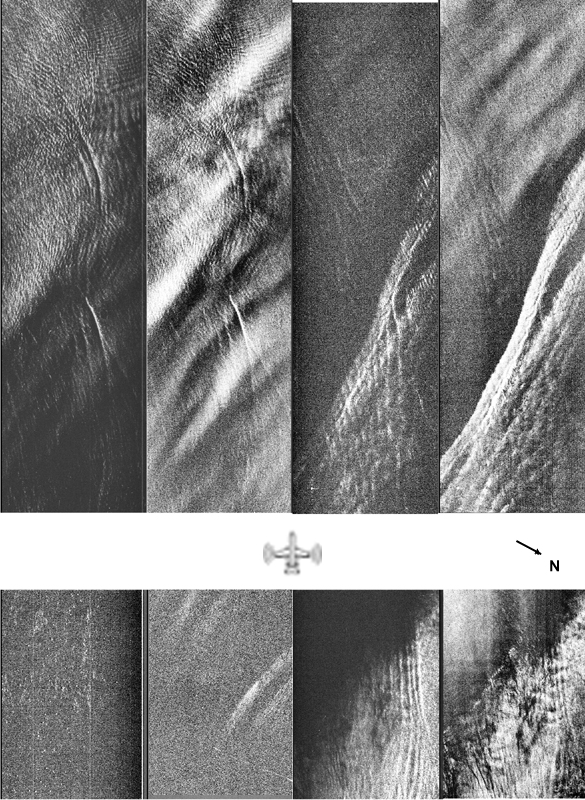

RARKu9207152127
|
| Platform/Sensor |
Tu-134/RAR |
| Flight altitude/speed |
2000 m / 455 km/h |
| Image partition |
8 fragments: 2 leftHH, 2 leftVV, 2 rightHH, 2 rightVV
|
| Wavelength(s)/Frequency(ies)/Band(s) |
2,25cm/13,6GHz/Ku |
| Polarization(s) |
VV, HH |
| Incidence angle(s) |
72-84° |
| Calibration |
Black is lowest value of radar
signal, white is highest value of radar signal
Full images: calibration coefficients for different fragments are different
Image preview: gray scale individually optimized for each channel |
| Date/Time |
15.07.92 / 21:27 - 21:36 |
| Area |
Northwestern Atlantic, New York Bight |
| Coordinates |
Start: 40° 12'N, 71°
34'W ;
End: 39° 53'N, 72° 20'W |
| Surface geometry |
60,0km*12,5km at each
board |
| Other signatures seen in the image |
Atmospheric internal waves; oceanic internal waves |
Supplementary information:

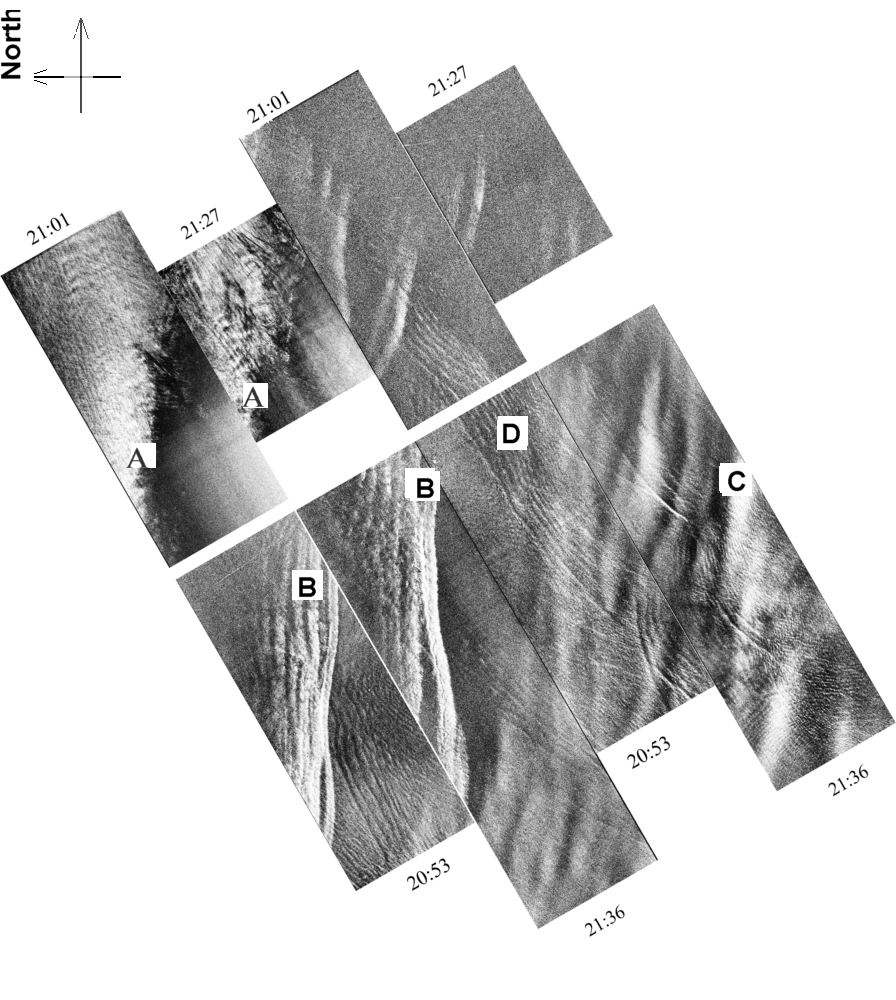

Geographic collocation of two-pass VV images

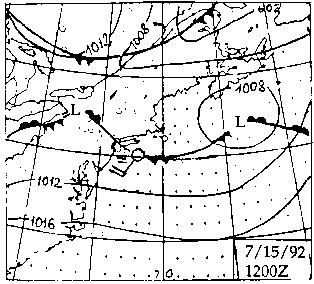

Weather map
Wind speed and direction graph
Air and water temperature graph
Atmospheric pressure graph
Source image: image size: 2800x2048 pixels;
pixel size: 25 x 25 m, file size: 5.6Mb
Owner: IKI RAS, contact: M.I. Mityagina
References:
Kravtsov, Yu.A., M.I. Mityagina, V.G. Pungin, and K.D. Sabinin, Manifestation of the wind-field fine structure ahead of an atmospheric cold front on radar imagery of the sea surface // Earth Observation and Remote Sensing, vol.15, pp. 513-525, 1999.
