IKI RAN Radar Image Collection
Atmospheric phenomena/
Atmospheric fronts

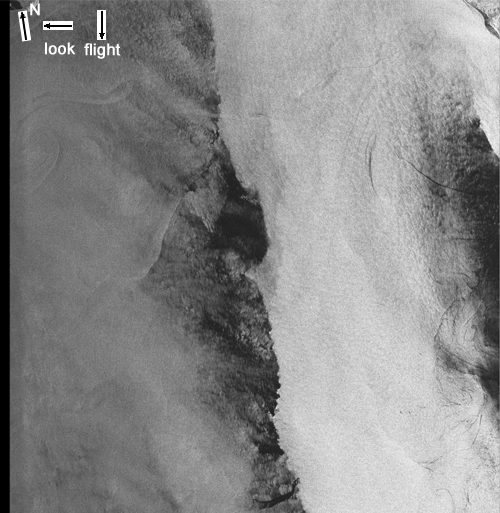

Preview/

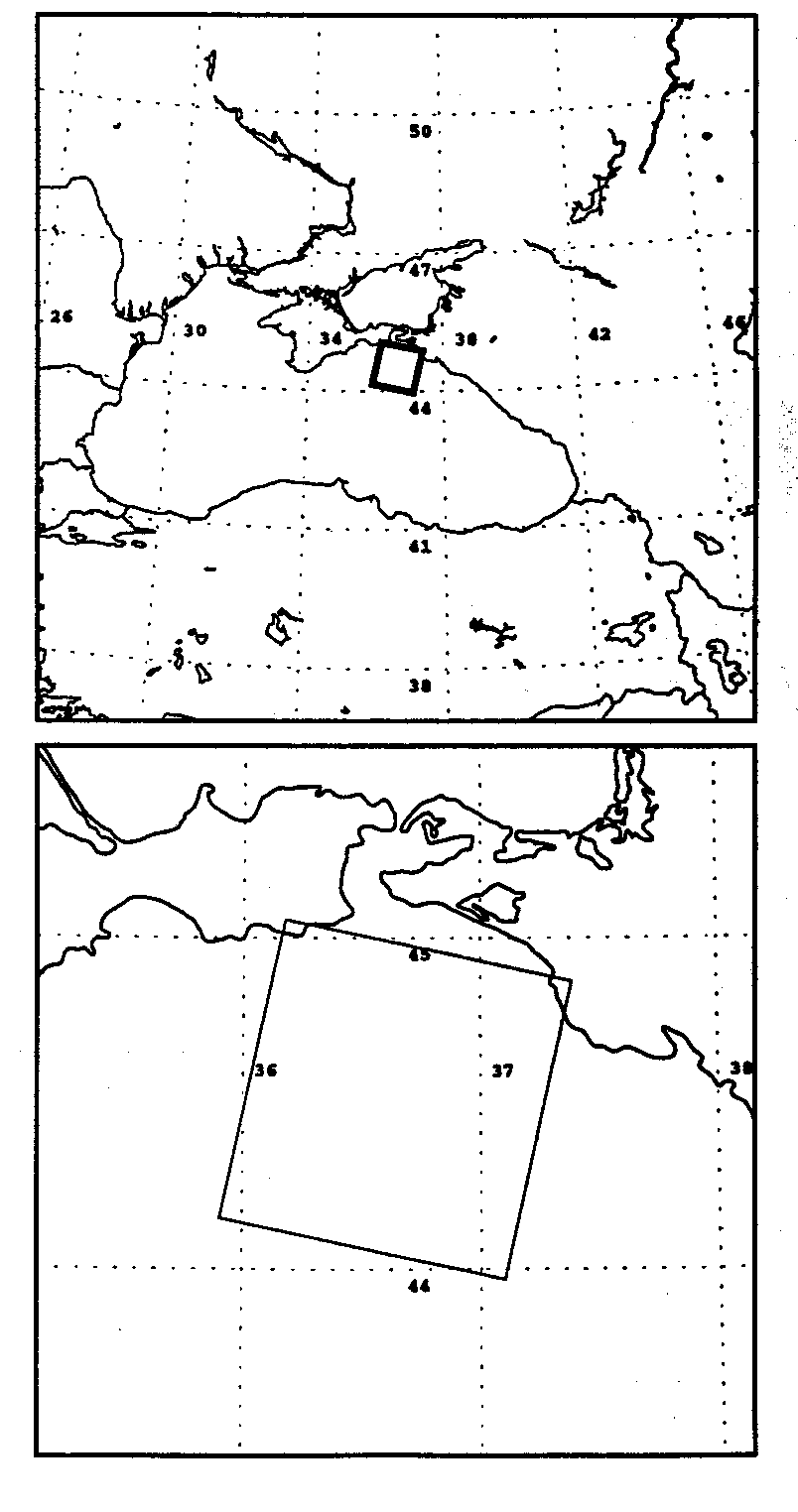

Location map
|
Image name
|
ERSC9910040822
|
| Platform/Sensor |
ERS-2/SAR |
| Flight altitude/speed |
785 km/6.8 km/s |
| Image partition |
No
|
| Wavelength(s)/Frequency(ies)/Band(s) |
0.057/5.3/C |
| Polarization(s) |
VV |
| Incidence angle(s) |
23° |
| Calibration |
Preview image: black is lowest NRCS, white is highest NRCS
Full images: PRI format |
| Date/Time |
04.10.99 / 08:22 |
| Area |
Black Sea |
| Coordinates |
45.055° N, 36.174° E; 44.869° N, 37.389° E;
43.968° N, 37.101° E; 44.153° N, 35.906° E |
| Surface geometry |
100x102 km |
| Other signatures seen in the image |
None from the list of interest |
Supplementary information:
Source image:
image size: 8000x8200 pixels;
pixel size: 12.5 x 12.5 m, file size: 128Mb
Owner: IKI RAS, contact: mityag@mx.iki.rsi.ru
